Working with ROS

Isaac IMI was designed to work with Isaac Sim 4.5.0 and ROS2 Humble. You can add ROS functionality to each robot in the simulation by writing a robot plugin. This page outlines a few things to keep in mind when writing these plugins.

ROS interface

When writing a robot plugin, there are two ways to interface with ROS.

1. Using self.ros_node

Each robot instance contains (at most) one ROS node. The same node is exposed to all plugins that are attached to the robot. As a developer, you can access this node in any plugin you write with self.ros_node. For example, the following plugin creates a subscriber to the /cmd_vel topic by accessing the ROS node of any robot it attaches to:

my_robot_plugin.py
from isaacimi.robot_plugin import ImiRobotPlugin
from geometry_msgs.msg import Twist

class MyRobotPlugin(ImiRobotPlugin):
    def on_plugin_load(self):
        self.ros_node.create_subscription(Twist, "/cmd_vel", self.twist_cmd_callback, 1)
        return

If none of the plugins attached to a robot access self.ros_node, a ROS node will not exist for that robot. The creation of nodes is managed internally by the RosManager.

2. Using action graphs

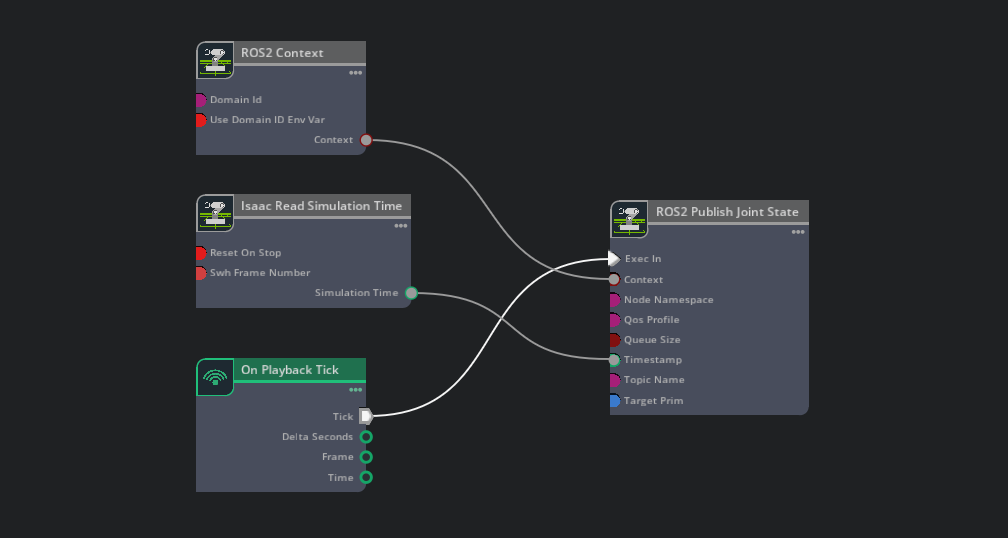

Since Isaac Sim provides action graphs with ROS functionality out of the box, you can use these action graphs in your plugins. For example, the following action graph publishes the joint states of the robot at the specified Target Prim to the specified Topic Name: Joint state publisher action graph in Isaac Sim

You can add this action graph to your robot by writing the following plugin. Note that omni.graph.core is part of Isaac Sim, and the syntax is documented here.

my_joint_state_publisher_plugin.py
from isaacimi.robot_plugin import ImiRobotPlugin
import omni.graph.core as og

class JointStatePublisherPlugin(ImiRobotPlugin):
    def on_plugin_load(self, topic_name):
        self.topic_name = topic_name
        return

    def set_up_scene(self, robot, scene):
        try:
            og.Controller.edit(
                {"graph_path": f"{robot.prim_path}/JointStatePublisherGraph", "evaluator_name": "execution"},
                {
                    og.Controller.Keys.CREATE_NODES: [
                        ("OnPlaybackTick", "omni.graph.action.OnPlaybackTick"),
                        ("PublishJointState", "isaacsim.ros2.bridge.ROS2PublishJointState"),
                        ("ReadSimTime", "isaacsim.core.nodes.IsaacReadSimulationTime"),
                    ],
                    og.Controller.Keys.CONNECT: [
                        ("OnPlaybackTick.outputs:tick", "PublishJointState.inputs:execIn"),
                        ("ReadSimTime.outputs:simulationTime", "PublishJointState.inputs:timeStamp"),
                    ],
                    og.Controller.Keys.SET_VALUES: [
                        # Note: the robot.prim_path property will return the articulation root of the robot
                        ("PublishJointState.inputs:targetPrim", robot.prim_path),
                        ("PublishJointState.inputs:topicName", self.topic_name),
                        ("PublishJointState.inputs:nodeNamespace", robot.name)
                    ],
                }
            )
        except Exception as e:
            print(e)
        return
Now, if you atttach this plugin to any robot in the simulation, the joint states of that robot will be published to the specified /nodeNamespace/topicName topic.

Note

It is recommended to use self.ros_node when adding ROS functionality to a robot unless using an action graph makes it significantly easier. For example, using an action graph to publish joint states is easier than manually querying all joints in the robot object ourselves and writing our own publisher with self.ros_node.create_publisher().

Namespacing

All ROS nodes accessed by self.ros_node have a namespace that matches the name of the robot (as specified in the simulation blueprint). For example, if the name of the robot is robot1, the name of the ROS node for that robot is /robot1/isaacsim_node.

Additionally, when using self.ros_node to publish and subscribe to topics, if the provided topic name does not have a / at the beginning, the node namespace is automatically prepended to the topic name (this is the expected behaviour when working with ROS). For example, if the following two plugins were attached to a robot named robot1, there would be one ROS node with two subscribers – one that listens to the /cmd_vel topic, and one that listens to the /robot1/cmd_vel topic:

my_robot_plugins.py
class MyRobotPlugin(ImiRobotPlugin):
    def on_plugin_load(self):
        # listens to the /cmd_vel topic
        self.ros_node.create_subscription(Twist, "/cmd_vel", self.twist_cmd_callback, 1)
        return

class MyOtherRobotPlugin(ImiRobotPlugin):
    def on_plugin_load(self):
        # listens to /robot1/cmd_vel
        self.ros_node.create_subscription(Twist, "cmd_vel", self.twist_cmd_callback, 1)
        return

Warning

When using action graphs for ROS functionality, an explicit input for nodeNamespace and topicName is usually available in the action graph node. You must set the nodeNamespace input explicitly if you want a namespace to be prepended to the topicName.

Transform broadcasting and listening

All ROS nodes returned via self.ros_node contain the following remapping:

  • /tf to tf
  • /tf_static to tf_static

This remapping effectively makes transform broadcasters and listeners in the node use /namespace/tf and /namespace/tf_static instead of /tf and /tf_static, where namespace is the name of the robot the node belongs to (as specified in the simulation blueprint).

Callback execution

The simulation loop is ran in a main process. Every loop, all nodes that were created through plugins (by accessing self.ros_node) are checked for an available callback. If a callback is available, that callback will begin execution. Only one callback will begin execution per simulation loop, or none if no callbacks are available.

Internally, a single rclpy.executors.MultiThreadedExecutor is used to execute all callbacks across all ROS nodes, so callbacks between nodes are executed concurrently. For example, given a simulation with robot1 and robot2, where each robot contains a ROS node that subscribes to their respective topics /robot1/cmd_vel and robot2/cmd_vel, the callback for robot1 may start execution in the first simulation loop, and the callback for robot2 may start in the second simulation loop immediately after, and both callbacks run concurrently.

To execute callbacks within the same node concurrently, they need to be added to a ReentrantCallbackGroup, as described in the official ROS2 Humble documentation.

Warning

It looks like rclpy.executors.MultiThreadedExecutor uses concurrent.futures.ThreadPoolExecutor under the hood, which is tied to the Global Interpreter Lock (GIL). Therefore, it is likely that ROS nodes written in Python cannot achieve parallellism even if callbacks are executed with rclpy.executors.MultiThreadedExecutor. Regardless, if your plugin hooks (such as pre_physics_step) and your ROS callbacks acess the same data, it's a good idea to protect that data with threading.Lock.
